Piercing Saw Tutorial
by Alf Murtell
Animation Alf tutorials 3


The piercing saw is a smaller version of the fret saw and is used by model makers and jewellers, it is ideal for cutting smaller pieces of marquetry.

The fret saw can also be used, but it is inclined to be cumbersome.

The piercing saw blades come in various grades, they are brittle, but can be softened by immersion in hot lead.

I would suggest that you start with a coarse blade until you get used to handling them, and then gradually progress to the very fine blades.

If you use either of these saw frames you will be limited to sawing a wad of four veneers, to cut more than this you will need a treadle saw, or an electric saw set at a reduced speed.

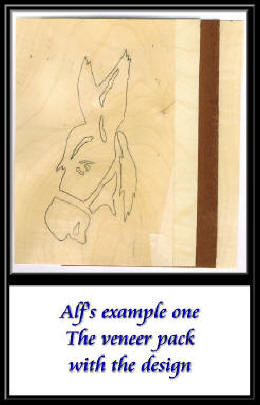

You will need four pieces of veneer (piercing saw example 1) in this case we are using 3 pieces of sycamore and one of sapele.

The top and bottom veneers are your wasters, the other two make up your picture

Trace your design on to a piece of sycamore, if you are able to get any waxed paper, inter-leave this between the four veneers, this will help to lubricate the saw blade, it is also a good idea to veneer tape all the veneers.

Make a “sticky tray” out of cardboard, say 7” x 9” (18 x 23 cm’s approx) and back it with a piece of Fablon (Fablon is a sticky backed plastic covering, often with a wood grain effect, used for covering and decorating blank surfaces such as cupboard doors etc.

If the Fablon brand is not available in your locality any similar type of sticky backed plastic covering will suffice).

Alfs example one

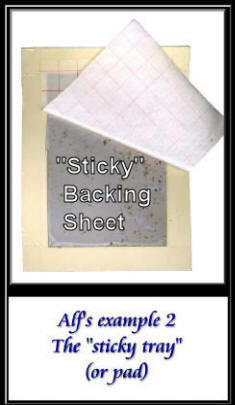

Remove the backing sheet from the Fablon and hinge this to the top of the tray (see piercing saw example 2).

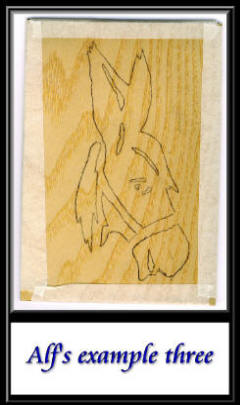

Tape together tightly all four pieces of veneer (piercing saw example 3). The first pieces to be cut out are the high lights on the face and mouth.

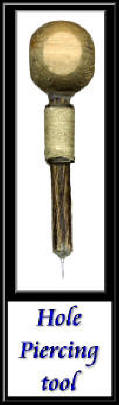

With a needle make a hole on the pencil line and thread the saw blade through the hole, as you cut out each piece, discard the top and bottom veneers (the wasters) and place the other two pieces on the “sticky tray”.

Alfs example two Hole piercing tool

Carry on doing the same procedures as I've outlined above for the rest of the picture.

When you have completed all the sawing, cut your wad of veneers apart, discarding the top and bottom veneers as you did with the first cut.

The remaining two veneers can now be assembled from the pieces on your “sticky tray”.

Piercing saw example 4 shows the completed picture.

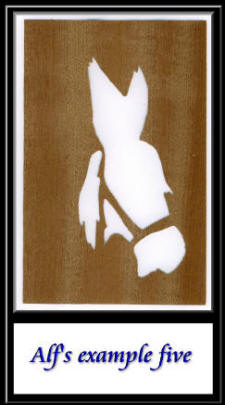

Piercing saw example 5 shows the picture awaiting the remaining pieces on the tray.

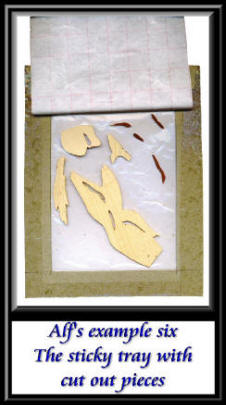

Piercing saw example 6 shows the cut out pieces of sycamore on the sticky tray ready for insertion into the piece of sapele as seen in example 5.

The eye can be cut in afterwards by using your knife in the usual way.

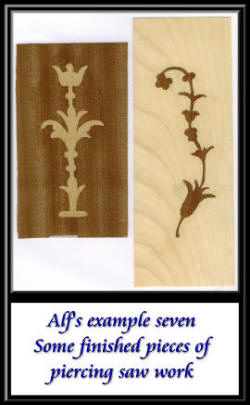

Piercing saw example 7 shows two other designs cut with a saw.

While I think of it, the one big important difference you will find with the piercing saw blade is that it is a 'round blade' with the cutting teeth place all round the blade so that it can cut from any direction.

Fret saws only cut in one direction. If you want to cut a curved line you have to move the work or the saw itself in the direction of the required cut. In this respect the piercing saw is a much easier tool to use for the purpose.

Alfs example three
Alfs example four Alfs example five
Alfs example six Alfs example seven


A few 'Stills' from the Piercing Saw Video

Piercing saw frame  Sticky pad demo 1
Cutting with piercing saw  Further saw cutting
Piercing saw cutting 2  Pieces on sticky pad p saw
Using the sticky pad  PS pieces into waster
Alf with p saw cut piece  The pack after first cut
Alf shows p saw examples  Piercing saw pieces on view
View 2 of PS items  Piercing saw finished picture
Two more examples of PS work  Two examples of PS work
Well, we hope you have found these "stills" have helped you with your understanding of the intricacies of piercing saw work.
