The Veneer Hammer
by Alf Murtell
Animation Alf tutorials 3

A marquetry tool not often used, or found, these days is the Veneer Hammer.

Although it is known as a hammer, it is not actually used as a hammer, it is used more in the fashion of a squeegee or a pestle in order to 'squeeze'out air bubbles or excess glue.

The veneer hammer consists of a wooden head about 5 inches (or 125mm) width by about 3 inches (75mm) depth and half an inch (12.5mm) thickness. A one sixteenth of an inch (approx 1.5mm) slot is cut in the "face" or flat end of the wooden head. Into this slot is fitted a round or curved edge metal blade of a non rusting nature that will not react chemically with the tannins found in certain veneers.

The wooden head is fitted with a convenient handle which will, in truth, actually act as more of a balancing element rather than a basic handle. In fact, as you will see in the following photos, veneering professionals normally use the veneer hammer with the handle facing away from them.

When the veneer hammer is used to lay the veneer to the base board (with a reasonably quick drying glue), the veneer hammer is used so as to work in the direction of the main grain of the veneers in a zigzag fashion, from the centre of the veneer arrangement outwards towards the edges. This action will squeeze out and exude any air bubbles and surplus glue and will ensure an excellent bond. It is used in a similar manner to the rocking motion cooks use when chopping herbs with those curved or rounded herb choppers (Mezzaluna). The difference here is that you are using the hammer to "squeeze" and not cut - and, of course, you are moving it over the entire surface of your work to perform the prescribed ultimate task.

veneer_hammer_pic1_72

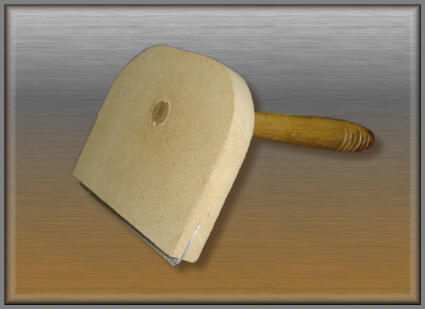

The wooden head with the non-ferrous blade fitted

veneer_hammer_pic2_72

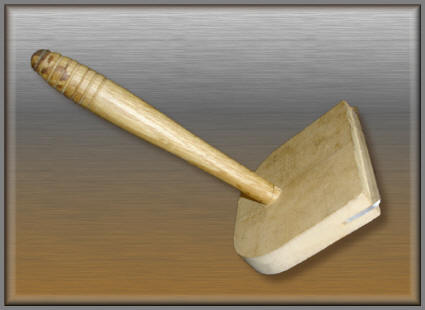

The handle fitted to the wooden head

using_veneer_hammer_pic_1_72

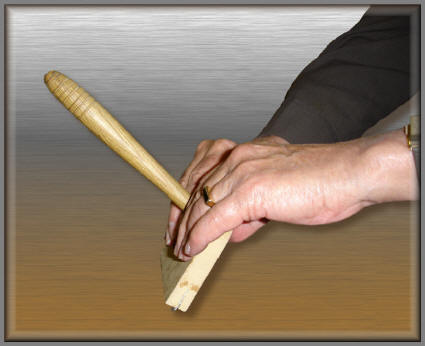

This is the normal way to use the veneer hammer

using_veneer_hammer_pic2_72

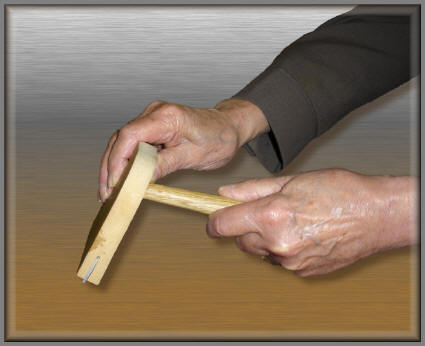

Poor results will be the only thing achieved if used this way

using_veneer_hammer_line_pic_v1_72_text

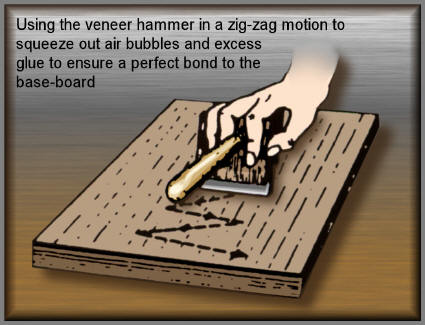

The zigzag pattern style recommended when using the veneer hammer
